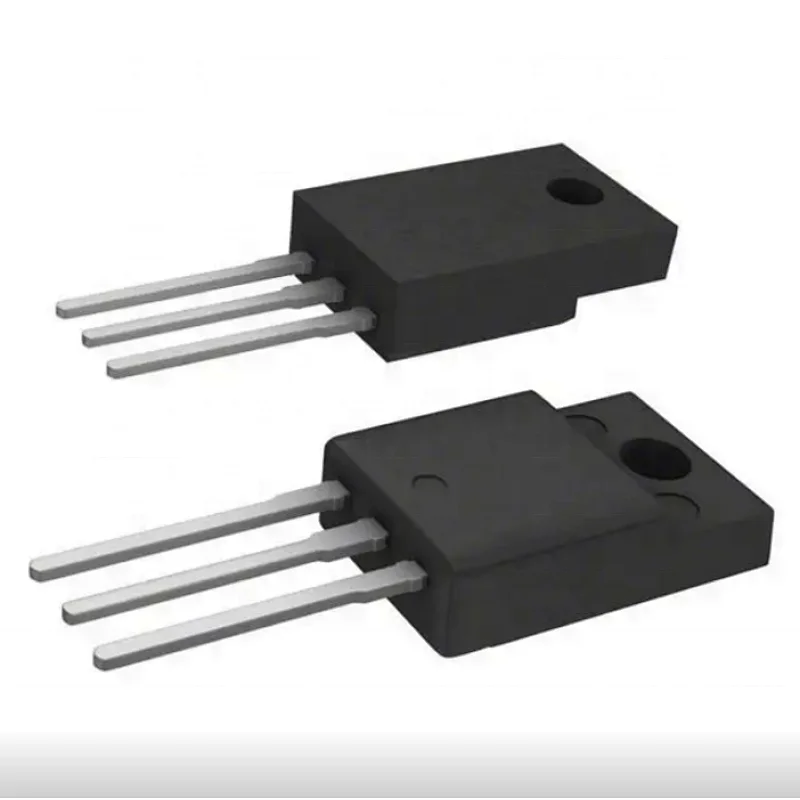

(Original New) MOSFET Transistor P7NK80ZFP STP7NK80ZFP
(Original New) MOSFET Transistor P7NK80ZFP STP7NK80ZFP
(Original New) MOSFET Transistor P7NK80ZFP STP7NK80ZFP
(Original New) MOSFET Transistor P7NK80ZFP STP7NK80ZFP
(Original New) MOSFET Transistor P7NK80ZFP STP7NK80ZFP

(Original New) MOSFET Transistor P7NK80ZFP STP7NK80ZFP

Model NO.:
STP7NK80ZFP
Price:
USD 0.01-0.10 / pieces
Minimum order quantity:
20 pieces
Supply Ability:
20000 pieces / Day
Country of Origin:
shenzhen
Quantity:
  • Place of Origin:CN;GUA
  • Type:Triode Transistor
  • Package Type:Throught Hole
  • Brand Name:Original Brand
  • Model Number:STP7NK80ZFP
  • Package:TO-220
  • Packing:Tube
  • Condition:100% Brand
  • Quality:100% Original 100% Brand
  • Shipping by:DHLUPSFedexEMSHK Post
  • Description:MOSFET
  • Lead Free Status:RoHS Non-compliant
  • Product Name:Transistor P7NK80ZFP
  • Application:Electronic Products
  • FET Type:N-Channel

(Original New) MOSFET Transistor P7NK80ZFP STP7NK80ZFP

Product Description
Product Attributes
CategoriesDiscrete Semiconductor Products
Transistors - FETs, MOSFETs - Single
SeriesSuperMESH™
PackagingTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)800V
Current - Continuous Drain (Id) @ 25°C5.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Vgs(th) (Max) @ Id4.5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs56nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds1138pF @ 25V
Vgs (Max)±30V
FET Feature-
Power Dissipation (Max)30W (Tc)
Rds On (Max) @ Id, Vgs1.8 Ohm @ 2.6A, 10V
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220FP
Package / CaseTO-220-3 Full Pack
Company introduction

Shenzhen XieFengDa Electronics Co., Ltd was set up in 2007. It is previously known as XieFeng (H.K.) Electron Limited which was found in 2003. The company relies on Hong Kong, establishes in Shenzhen. Specialize in Electronic Components: IC/Transistor/Diode/Capacitor/Resistor etc. Our clients are all over the world, in different time zones. Especially in Europe.

The total sale volume is above 10 million dollars in 2016. After years of development, Our Company has lots of old customers which are the manufacturers of audio, LCD, PC, PCB.
Most of our products are new and original, any interests please contact me.
