AN5330#SOT23-5 TV/Video Signal Processor PMIC - LED Drivers
AN5330#SOT23-5 TV/Video Signal Processor PMIC - LED Drivers

AN5330#SOT23-5 TV/Video Signal Processor PMIC - LED Drivers

Model NO.
AN5330
Price:
USD 0.10-10.00 / piece
Minimum order quantity:
1 piece
Supply Ability:
60000 piece / Day
Country of Origin:
Shen Zhen
Quantity:
  • Place of Origin:US;1003
  • D/C:2012+
  • Brand Name:Brand
  • Model Number:AN5330
  • Type:LOGIC ICS
  • Package:SOT-23-5
  • Package / Case:SC-74A, SOT-753
  • Operating Temperature:-40°C ~ 85°C
  • Dissipation Power:W
  • Application:Computer
  • Supply Voltage:30V



DatasheetsFAN5330

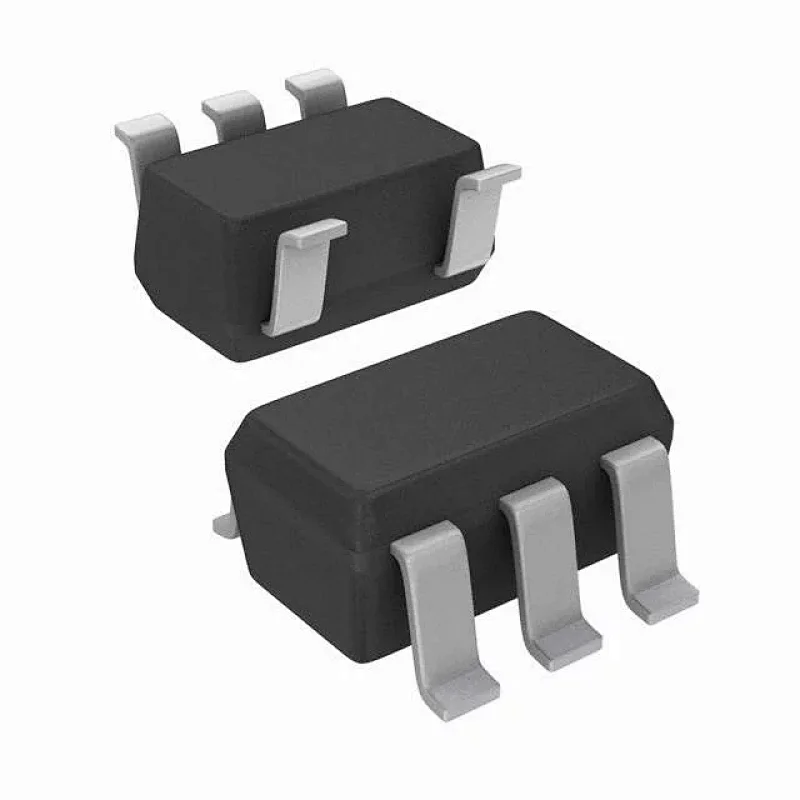

Product PhotosSOT-23-5
Product Change NotificationMold Compound Change 12/Dec/2007
Product Discontinuation 03/Dec/2009
Standard Package3,000
CategoryIntegrated Circuits (ICs)
FamilyPMIC - LED Drivers
Series-
Constant Current-
Constant Voltage-
TopologyPWM, Step-Up (Boost)
Number of Outputs1
Internal DriverYes
Type - PrimaryGeneral Purpose
Type - Secondary-
Frequency1.5MHz
Voltage - Supply1.8 V ~ 5.5 V
Voltage - Output30V
Mounting TypeSurface Mount
Package / CaseSC-74A, SOT-753
Supplier Device PackageSOT-23-5
PackagingTape & Reel (TR)
Operating Temperature-40°C ~ 85°C
