IR 430V 20A Ignition IGBT IRGS14C40LTRLP
IR 430V 20A Ignition IGBT IRGS14C40LTRLP
IR 430V 20A Ignition IGBT IRGS14C40LTRLP

IR 430V 20A Ignition IGBT IRGS14C40LTRLP

Model NO.
IRGS14C40LTRLP
Price:
USD 0.10-10.00 / pieces
Minimum order quantity:
10 pieces
Supply Ability:
100000 pieces / Day
Country of Origin:
Shenzhen
Quantity:
  • Place of Origin:US;5599
  • Brand Name:N/A
  • Package Type:Surface Mount
  • Model Number:IRGS14C40LTRLP
  • Type:IGBTs - Single
  • Package / Case:TO-263-3

Strong Brand



ATMEL/MAXIM/TI/ST/Fairchild/NS/VISHAY/TOSHIBA/SHARP/ROHM/ON/YAGEO and so on .

For more information , pls call us , let's talk about details



Data sheet





DatasheetsIRG(S,SL,B)14C40L

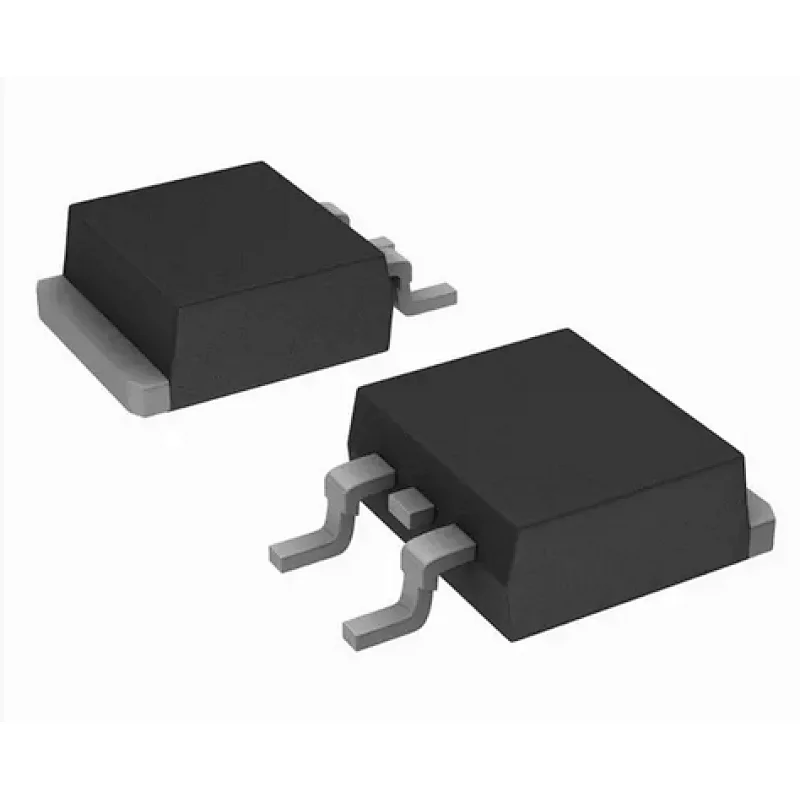

Product PhotosTO-263
Standard Package800
CategoryDiscrete Semiconductor Products
FamilyIGBTs - Single
Series-
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)430V
Vce(on) (Max) @ Vge, Ic1.75V @ 5V, 14A
Current - Collector (Ic) (Max)20A
Current - Collector Pulsed (Icm)-
Power - Max125W
Switching Energy-
Input TypeLogic
Gate Charge27nC
Td (on/off) @ 25°C900ns/6µs
Test Condition-
Reverse Recovery Time (trr)-
PackagingTape & Reel (TR)
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Mounting TypeSurface Mount
Supplier Device PackageD2PAK





Real Pictures Show :
