LM324N General Purpose Low Power Single Op Amp IC
LM324N General Purpose Low Power Single Op Amp IC
LM324N General Purpose Low Power Single Op Amp IC
LM324N General Purpose Low Power Single Op Amp IC
LM324N General Purpose Low Power Single Op Amp IC

LM324N General Purpose Low Power Single Op Amp IC

Model NO.
LM324N
Price:
USD 0.01-0.10 / piece
Minimum order quantity:
1 piece
Supply Ability:
2000000 piece / Day
Country of Origin:
Shenzhen
Quantity:
  • Type:Drive IC
  • Place of Origin:US;1003
  • D/C:2014+/2015+
  • Package:14DIP
  • Model Number:LM324N
  • Brand Name:N/A
  • Application:General Purpose
  • Packaging:Tube
  • Mounting Type:Through Hole
  • Operating Temperature:0°C ~ 70°C
  • Shipping by:DHLUPSFedexEMSHK Post
  • Condition:Original 100%
  • Payment:T/T
  • Lead Free Status:Lead

 LM324N General Purpose Low Power Single Op Amp IC

Product Description



DatasheetsLM124/224/324/2902 Datasheet

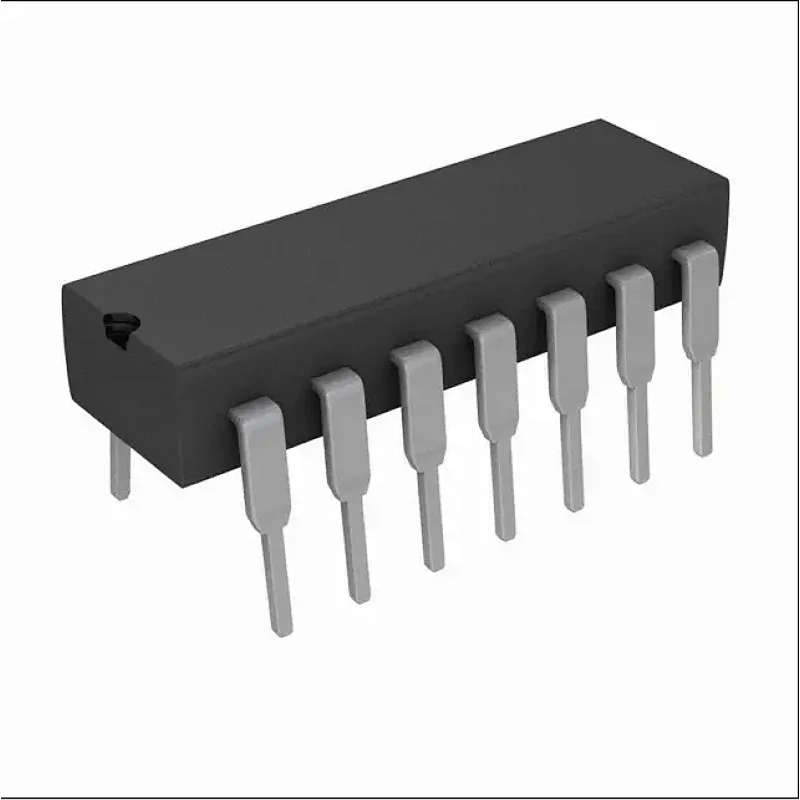

Product Photos14-Dip
Design ResourcesCreate your power design now with TI's WEBENCH® Designer
PCN Assembly/OriginQualification Assebly/Test Site 18/Mar/2014
Qualification Revision B 03/Apr/2014
Qualification Revision C 23/Dec/2014
Standard Package  25
Category

Integrated Circuits (ICs)

Family

Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps

Series-
PackagingTube
Amplifier TypeGeneral Purpose
Number of Circuits4
Output Type-
Slew Rate0.5 V/µs
Gain Bandwidth Product1.2MHz
-3db Bandwidth-
Current - Input Bias20nA
Voltage - Input Offset3mV
Current - Supply1.4mA
Current - Output / Channel60mA
Voltage - Supply, Single/Dual (±)3 V ~ 32 V, ±1.5 V ~ 16 V
Operating Temperature0°C ~ 70°C
Mounting TypeThrough Hole
Package / Case14-DIP (0.300", 7.62mm)
Supplier Device Package14-PDIP
Online CatalogGeneral Purpose
Other Names296-1391
296-1391-5



Packaging & Shipping

 shipping

  • Shipping: UPS / Fedex / DHL / TNT / EMS. Pls contact us directly which way your preferred.

           For the Countries & Regions where EMS cannot deliver, pls choose other shipping ways.



Company Information

Shenzhen Xiefengda Technology Co,.ltd specialize in electronic components such as ic , capcaitor , diode , fuse, transistor , resistor and so on .We have done this business over 10

years,having builded long-term cooperation relationships with lots of famous factories and agents all over the world . We have been committed to offering the broadest selection of in stock

electronic components,as well as providing the lowest price at the fastest speed,whatever products you are sourcing. We possess strict quality control system as well as professional testing equipment and experienced electronics engineers.

All products will be tested and evaluated strictly before shipment.We offer the longest warranty period than any others,you can 100% return or exchange the goods within warranty .

We are your most professional and trustful choice.



FAQ



  • Is your parts new and original ?

Answer : Yes !Our parts could accept any kinds of testing , if there is any quality problems we will take responsible .

  • What is your warranty ?

Answer :  Within 60 days after package have been received .

  • How to pay the order ?

Answer : We could accept TT , Escrow , Paypal , Western Union and Alipay .After the order have been confirmed the invoice will be sent for reference .Then make payment as the way you like , as soon as the payment have been confirmed ,we will arrange shippment within 3 days .

  • Quality problems

Answer :  If there is any quality problems or questions , we could offer technical support or return service .

  •  What is your lead time ?

Answer :There are no lead times for in-stock products. Most of the parts could be shipped out within 3 days after payment have been confirmed.



  • May I have a sample for testing ?



Answer :Yes ! Only to pay shipping cost ,free samples could be sent for testing .
