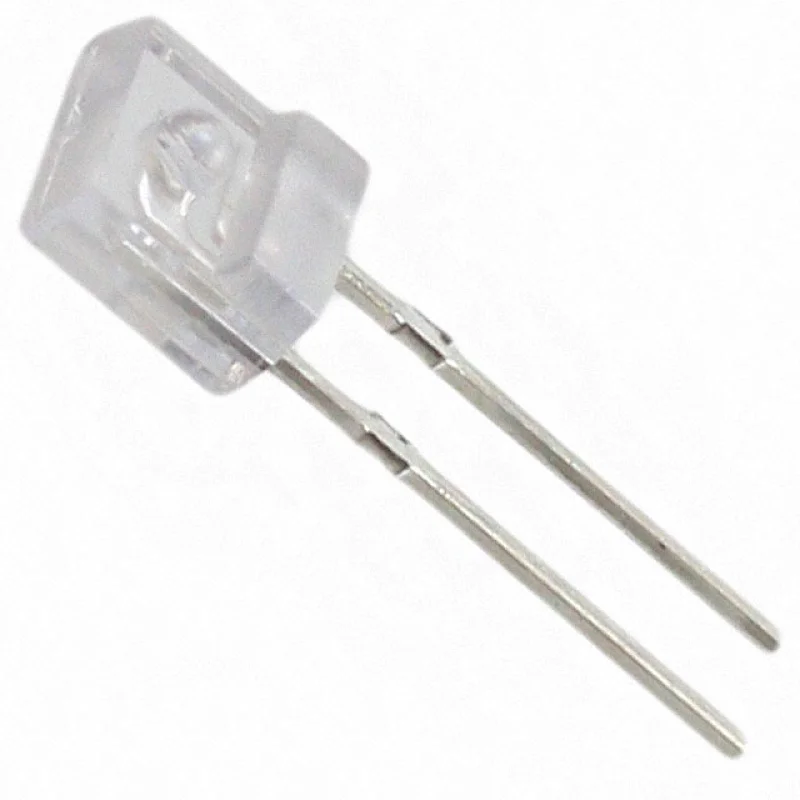

Radial 100ns 5MM Silicon PIN Photodiode Sensors bpv10
Radial 100ns 5MM Silicon PIN Photodiode Sensors bpv10

Radial 100ns 5MM Silicon PIN Photodiode Sensors bpv10

Model NO.
bpv10
Price:
USD 0.10-10.00 / pieces
Minimum order quantity:
10 pieces
Supply Ability:
75000 pieces / Day
Country of Origin:
Shen Zhen
Quantity:
  • Place of Origin:US;1003
  • Usage:Magnetic Sensor
  • Model Number:bpv10
  • Brand Name:Brand
  • Output:Switching Transducer
  • Theory:Current Sensor
  • Package / Case:Radial



DatasheetsBPV10
Product PhotosBPV10
Catalog DrawingsT-1 3/4 5mm Diameter
Standard Package4,000
CategorySensors, Transducers
FamilyPhotodiodes
Series-
Wavelength940nm
Color - Enhanced-
Spectral Range790nm ~ 1050nm
Diode TypePIN
Responsivity @ nm-
Response Time-
Voltage - DC Reverse (Vr) (Max)60V
Current - Dark (Typ)1nA
Active Area0.78mm²
Viewing Angle40°
Operating Temperature-40°C ~ 100°C
Package / CaseRadial
Dynamic CatalogBPV and BPW
Other Names751-1001
